Specifications
| Nominal Voltage | 12V | |
| Rated Capacity (20 hour rate) | 9Ah | |

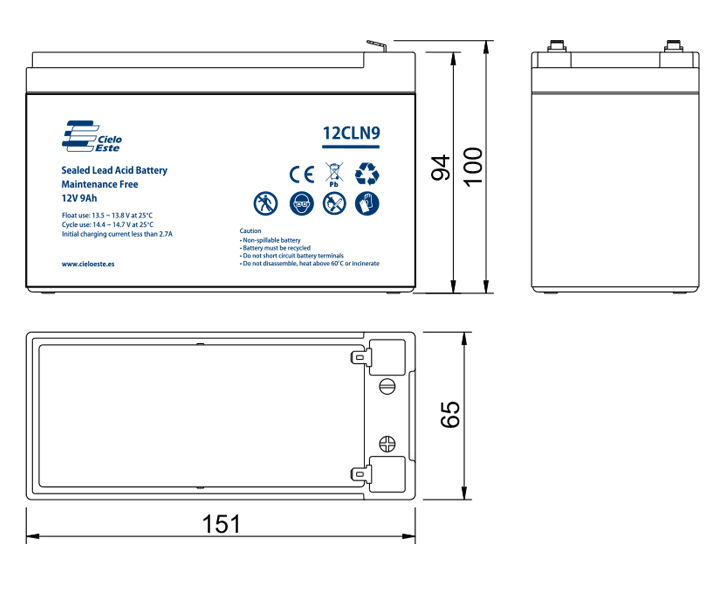

| Dimensions | Total Height (with terminals) | 3.94 inches (100mm) |
| Height | 3.70 inches (94mm) | |
| length | 5.94 inches (151mm) | |
| width | 2.56 inches (65mm) | |
| Weight | Approx. 5.52 pound (2.51kg) | |
Characteristics
| Capacity 77°F (25°C) | 20 hour rate (0.45A) | 9.0Ah | |
| 10 hour rate (0.83A) | 8.3Ah | ||
| 5 hour rate (1.44A) | 7.2Ah | ||
| 1 hour rate (5.40A) | 5.4Ah | ||
| 15 minute rate (15.6A) | 3.9Ah | ||
| Internal Resistance | Full charged Battery 77°F (25°C) | 13mΩ | |
| Capacity Affected by Temperature (20 hour rate) | 104°F (40°C) | 102% | |
| 77°F (25°C) | 100% | ||
| 32°F (0°C) | 85% | ||
| 5°F (-15°C) | 65% | ||
| Self-Discharge 77°F (25°C) | Capacity after 3 month storage | 91% | |
| Capacity after 6 month storage | 81% | ||
| Capacity after 12 month storage | 60% | ||
| Max. Discharge Current 77°F (25°C) | 135A (5S) | ||
| Terminal | F1 / F2 | ||
| Charge
(constant voltage) |
Cycle | Initial charging current less than 2.7A | |
| Voltage 14.4~14.7 V / 77°F (25°C) | |||
| Float | Voltage 13.5~13.8V / 77°F (25°C) | ||
Discharge Curves 77°F (25°C)

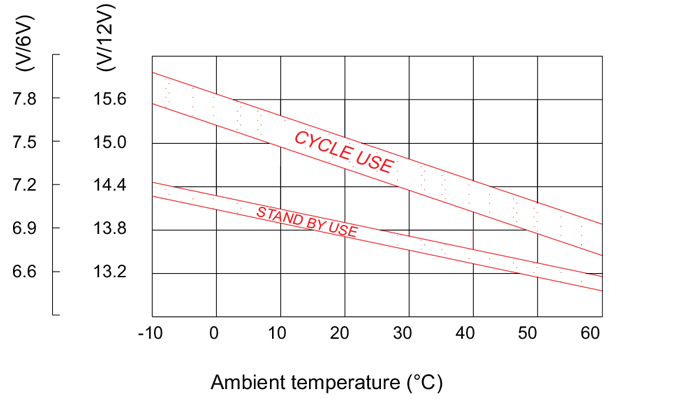

Relationship between charge voltage and temperature
Constant Current Discharge (AMPERES @ 25°C)
| F.V/Time | 5min | 10min | 15min | 30min | 1h | 3h | 5h | 10h | 20h |
| 1.60 | 35.9 | 22.3 | 16.8 | 10.3 | 6.0 | 2.87 | 1.67 | 0.86 | 0.46 |
| 1.65 | 33.3 | 21.0 | 16.1 | 9.7 | 8.9 | 2.73 | 1.62 | 0.85 | 0.46 |
| 1.70 | 30.8 | 20.4 | 15.8 | 8.9 | 5.7 | 2.58 | 1.60 | 0.84 | 0.45 |
| 1.75 | 30.2 | 19.8 | 15.7 | 8.5 | 5.5 | 2.49 | 1.56 | 0.83 | 0.45 |
| 1.80 | 27.0 | 18.9 | 15.6 | 7.9 | 5.4 | 2.39 | 1.44 | 0.82 | 0.44 |
Constant Power Discharge (WATTS PER CELL @ 25°C)
| F.V/Time | 5min | 10min | 15min | 30min | 1h | 3h | 5h | 10h | 20h |
| 1.60 | 62.9 | 40.0 | 30.7 | 18.5 | 10.8 | 5.10 | 2.81 | 1.72 | 1.05 |
| 1.65 | 60.1 | 38.9 | 30.1 | 18.0 | 10.7 | 4.87 | 2.77 | 1.70 | 1.98 |
| 1.70 | 57.1 | 38.9 | 30.1 | 16.9 | 10.6 | 4.70 | 2.76 | 1.69 | 1.97 |
| 1.75 | 57.5 | 38.8 | 29.9 | 16.4 | 10.4 | 4.59 | 2.73 | 1.68 | 1.96 |
| 1.80 | 52.6 | 38.1 | 27.6 | 15.7 | 9.8 | 4.45 | 2.65 | 1.66 | 1.93 |
The operating environment temperature above 40°C should be avoided. After long term storage, the battery actual capacity would be less than the rated capacity. Full capacity will be obtained through several charge/discharge cycles.
To get the longest life, battery should be fully charged before storage.
Cycle service life in relation to depth of discharge

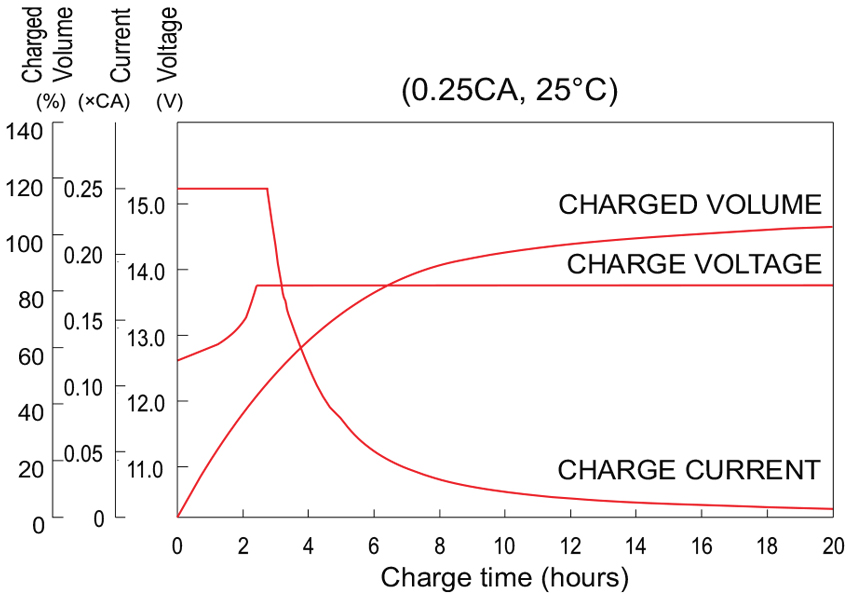

Constant voltage charge characteristic

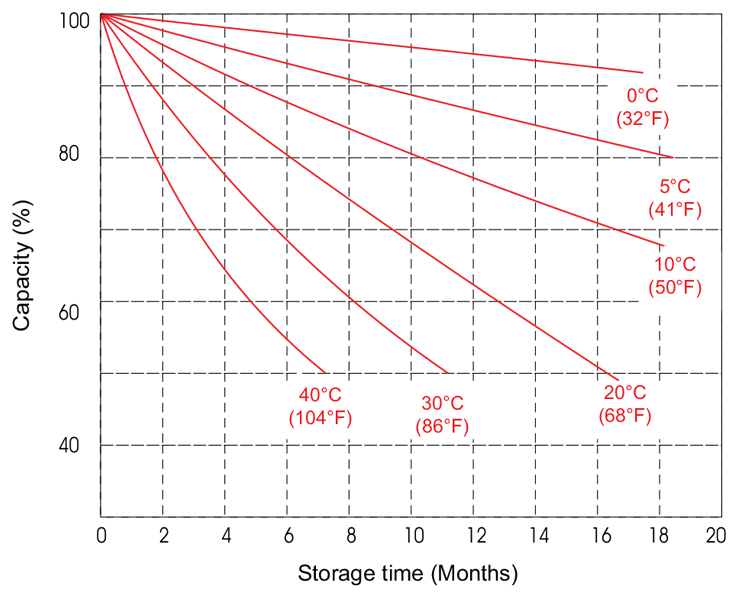

Self-Discharge Characteristics
Relationship of OCV and Residual Capacity % (25 C°)

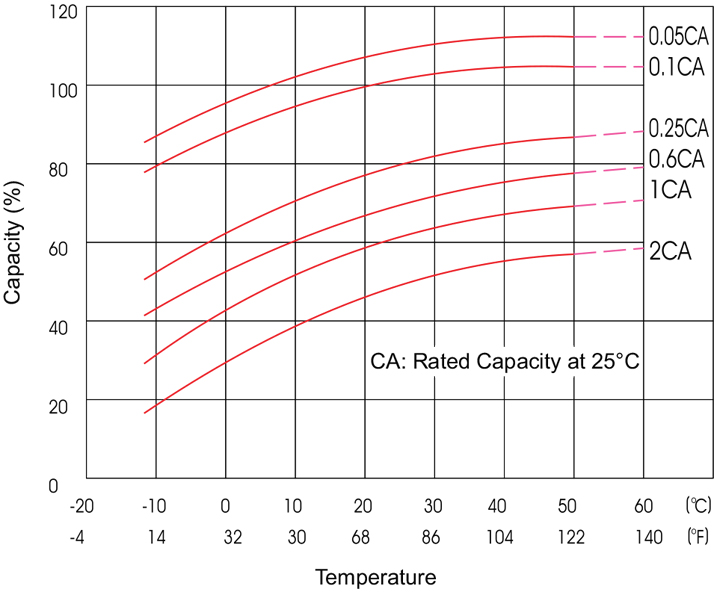

Temperature effects on capacity
Temperature effects float life
