Specifications
| Nominal Voltage | 12V | |
| Rated Capacity (20 hour rate) | 65Ah | |

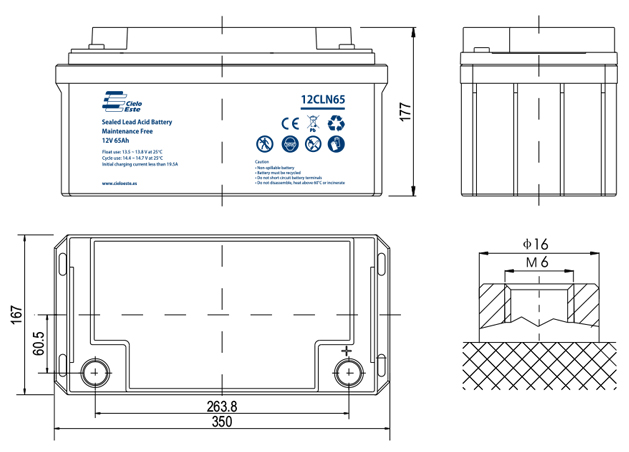

| Dimensions | Total Height (with terminals) | 6.97 inches (177mm) |
| Height | 6.97 inches (177mm) | |
| length | 13.8 inches (350mm) | |
| width | 6.57 inches (167mm) | |
| Weight | Approx.44.0 pound (20.0kg) | |
Characteristics
| Capacity 77°F (25°C) | 20 hour rate (3.25A) | 65Ah | |
| 10 hour rate (6.10A) | 61Ah | ||
| 5 hour rate (10.4A) | 52Ah | ||
| 1 hour rate (39.0A) | 39Ah | ||
| 15 minute rate (107A) | 26.8Ah | ||
| Internal Resistance | Full charged Battery 77°F (25°C) | 7.5mΩ | |
| Capacity Affected by Temperature (20 hour rate) | 104°F (40°C) | 102% | |
| 77°F (25°C) | 100% | ||
| 32°F (0°C) | 85% | ||
| 5°F (-15°C) | 65% | ||
| Self-Discharge 77°F (25°C) | Capacity after 3 month storage | 91% | |
| Capacity after 6 month storage | 81% | ||
| Capacity after 12 month storage | 60% | ||
| Max. Discharge Current 77°F (25°C) | 650A (5S) | ||
| Terminal | M2 / B5 / B11 | ||
| Charge
(constant voltage) |
Cycle | Initial charging current less than 19.5A | |
| Voltage 14.4~14.7 V / 77°F (25°C) | |||
| Float | Voltage 13.5~13.8V / 77°F (25°C) | ||
Discharge Curves 77°F (25°C)
Relationship between charge voltage and temperature
Constant Current Discharge (AMPERES @ 25°C)
| F.V/Time | 5min | 15min | 30min | 45min | 1h | 2h | 3h | 4h | 5h | 6h | 8h | 10h | 12h | 20h | 24h |
| 1.65 | 190.9 | 110.1 | 65.1 | 47.7 | 39.6 | 23.1 | 17.29 | 13.42 | 11.92 | 10.05 | 7.75 | 6.41 | 5.45 | 3.40 | 2.87 |
| 1.70 | 190.7 | 109.3 | 64.9 | 46.8 | 39.2 | 22.2 | 17.20 | 13.37 | 11.90 | 10.10 | 7.72 | 6.30 | 5.42 | 3.30 | 2.85 |
| 1.80 | 158.2 | 107.4 | 61.6 | 45.5 | 39.0 | 21.4 | 16.9 | 13.23 | 11.55 | 9.89 | 7.70 | 6.10 | 5.38 | 3.25 | 2.83 |
Constant Power Discharge (WATTS PER CELL @ 25°C)
| Cut off Voltage V/cell | 5min | 15min | 30min | 45min | 1h | 2h | 3h | 4h | 5h | 6h | 8h | 10h | 12h | 20h | 24h |
| 1.60 | 343.7 | 193.8 | 121.4 | 92.5 | 73.9 | 43.9 | 34.1 | 26.9 | 23.32 | 19.70 | 15.52 | 12.61 | 10.70 | 6.83 | 5.77 |
| 1.65 | 337.2 | 191.9 | 119.2 | 91.6 | 73.6 | 42.9 | 33.7 | 26.7 | 23.27 | 19.67 | 15.48 | 12.53 | 10.63 | 6.81 | 5.75 |
| 1.67 | 331.7 | 190.5 | 121.5 | 91.3 | 73.4 | 42.5 | 33.4 | 26.1 | 23.23 | 19.62 | 15.34 | 12.50 | 10.60 | 6.80 | 5.74 |
| 1.70 | 328.4 | 188.7 | 120.4 | 90.8 | 73.1 | 42.1 | 33.0 | 25.8 | 22.92 | 19.49 | 15.20 | 12.46 | 10.56 | 6.77 | 5.70 |
| 1.75 | 307.0 | 186.7 | 119.3 | 90.2 | 72.1 | 41.9 | 32.2 | 25.8 | 22.67 | 19.46 | 15.0 | 12.44 | 10.52 | 6.76 | 5.69 |
| 1.80 | 286.6 | 176.5 | 116.3 | 88.0 | 71.9 | 41.8 | 31.6 | 25.2 | 22.34 | 19.38 | 14.98 | 12.31 | 10.50 | 6.75 | 5.68 |
| 1.85 | 262.1 | 158.1 | 107.1 | 87.2 | 69.8 | 40.0 | 31.0 | 24.8 | 21.32 | 19.30 | 14.42 | 11.93 | 10.38 | 6.70 | 5.60 |
The operating environment temperature above 40°C should be avoided. After long term storage, the battery actual capacity would be less than the rated capacity. Full capacity will be obtained through several charge/discharge cycles.
To get the longest life, battery should be fully charged before storage.
Cycle service life in relation to depth of discharge
Constant voltage charge characteristic
Self-Discharge Characteristics
Relationship of OCV and Residual Capacity % (25 C°)
Temperature effects on capacity
Temperature effects float life
