Specifications
| Nominal Voltage | 12V | |
| Rated Capacity (20 hour rate) | 100Ah | |

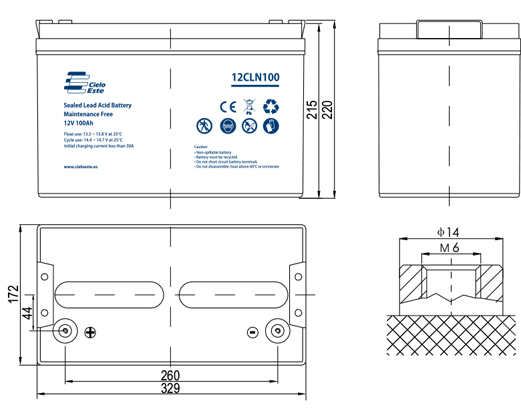

| Dimensions | Total Height (with terminals) | 8.66 inches (220mm) |
| Height | 8.46 inches (215mm) | |
| length | 12.95 inches (329mm) | |
| width | 6.77 inches (172mm) | |
| Weight | Approx. 60.94 pound (27.7kg) | |
Characteristics
| Capacity 77°F (25°C) | 20 hour rate (5.0A) | 100Ah | |
| 10 hour rate (9.2A) | 92Ah | ||
| 5 hour rate (16.0A) | 80Ah | ||
| 1 hour rate (60.0A) | 60Ah | ||
| 15 minute rate (164A) | 41Ah | ||
| Internal Resistance | Full charged battery 77°F (25°C) | 5mΩ | |
| Capacity Affected by Temperature (20 hour rate) | 104°F (40°C) | 102% | |
| 77°F (25°C) | 100% | ||
| 32°F (0°C) | 85% | ||
| 5°F (-15°C) | 65% | ||
| Self-Discharge 77°F (25°C) | Capacity after 3 month storage | 91% | |
| Capacity after 6 month storage | 81% | ||
| Capacity after 12 month storage | 60% | ||
| Max. Discharge Current 77°F (25°C) | 800A (5S) | ||
| Terminal | M2 | ||
| Charge
(constant voltage) |
Cycle | Initial charging current less than 30A | |
| Voltage 14.4~14.7 V / 77°F (25°C) | |||
| Float | Voltage 13.5~13.8V / 77°F (25°C) | ||
Discharge Curves 77°F (25°C)
Relationship between charge voltage and temperature
Constant Current Discharge (AMPERES @ 25°C)
| F.V/Time | 5min | 15min | 30min | 45min | 1h | 2h | 3h | 4h | 5h | 6h | 8h | 10h | 12h | 20h | 24h |
| 1.65 | 335.3 | 167.7 | 109.0 | 77.7 | 60.6 | 34.5 | 25.3 | 20.2 | 16.2 | 14.8 | 11.6 | 9.4 | 8.2 | 5.1 | 4.4 |
| 1.70 | 326.4 | 164.0 | 108.1 | 77.2 | 60.0 | 34.3 | 25.1 | 20.1 | 16.0 | 14.7 | 11.6 | 9.2 | 8.1 | 5.0 | 4.3 |
| 1.80 | 268.2 | 149.0 | 100.6 | 72.2 | 58.0 | 33.5 | 24.9 | 20.0 | 16.0 | 14.7 | 11.5 | 9.2 | 8.1 | 5.0 | 4.3 |
Constant Power Discharge (WATTS PER CELL @ 25°C)
| Cut off Voltage V/cell | 5min | 15min | 30min | 45min | 1h | 2h | 3h | 4h | 5h | 6h | 8h | 10h | 12h | 20h | 24h |
| 1.60 | 599.8 | 313.1 | 202 | 151.0 | 116.2 | 66.0 | 49.5 | 40.0 | 33.2 | 29.3 | 23.0 | 18.9 | 16.3 | 10.5 | 8.6 |
| 1.65 | 572.7 | 301.0 | 200 | 148 | 113.1 | 65.7 | 49.3 | 39.8 | 33.0 | 29.2 | 22.9 | 18.8 | 16.2 | 10.4 | 8.5 |
| 1.67 | 567.6 | 300.8 | 199.9 | 147.2 | 115.6 | 65.5 | 49.2 | 39.7 | 32.9 | 29.1 | 22.8 | 18.8 | 16.2 | 10.3 | 8.6 |
| 1.70 | 562.0 | 297.9 | 197.9 | 145.9 | 114.2 | 65.3 | 48.8 | 39.2 | 32.8 | 29.0 | 22.7 | 18.7 | 16.0 | 10.2 | 8.5 |
| 1.75 | 552.3 | 291.7 | 195.9 | 142.8 | 112.2 | 65.2 | 48.7 | 39.2 | 32.7 | 29.0 | 22.7 | 18.7 | 16.0 | 10.1 | 8.5 |
| 1.80 | 490.6 | 275.4 | 190.8 | 139.8 | 112.2 | 64.9 | 48.2 | 39.0 | 32.7 | 29.0 | 22.6 | 18.7 | 16.0 | 10.1 | 8.5 |
| 1.85 | 399.8 | 246.8 | 177.4 | 134.7 | 107.1 | 63.1 | 47.6 | 38.8 | 32.5 | 28.7 | 22.6 | 18.6 | 15.9 | 10.0 | 8.5 |
The operating environment temperature above 40°C should be avoided. After long term storage, the battery actual capacity would be less than the rated capacity. Full capacity will be obtained through several charge/discharge cycles.
To get the longest life, battery should be fully charged before storage.
Cycle service life in relation to depth of discharge
Constant voltage charge characteristic
Self-Discharge Characteristics
Relationship of OCV and Residual Capacity % (25 C°)
Temperature effects on capacity
Temperature effects float life
